Orient Electric

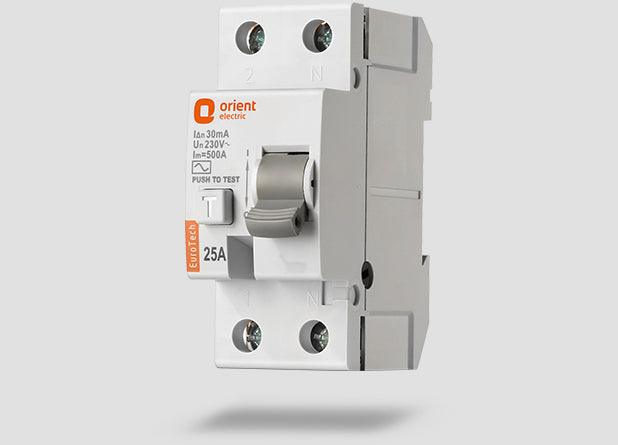

DP 100mA WE RCCB 25A

Select Size

Product Description

Orient introduces the new Euro Tech range of RCCB's rating from 25A to 63A having 30mA to 300mA current sensitivity. The range offers a variety of feature benefits such as Conditional Short Circuit Breaking Capacity of 10 kA across the entire range of RCCBs in accordance with IS 12640-1 and IEC 61008-1, it also incorporates features like Sealing cover, dual termination, positive contact indication, test button for regular inspection, Easy and simple mounting and replacement, Field fit table Auxiliary Contacts and Air Circulation design.

View full details
Specifications
Rated Voltage (Ue) 240 V AC
Rated Frequency (F) 50 Hz
Current Rating 25A
Sensitivity 100mA
Type Double Pole
Breaking Capacity(In) 415V-FP
Rated Making And Breaking Capacity (Im) 500A Upto 40A RCCB 630A Upto 63A RCCB
Tripping Time 0.2Sec
Index Of Protection IP20 (IP40)
Terminal Capacity 1-25mm2
Rated Insulation Voltage (Ui) 500V
Impulse Impulse Voltage (Uim 4 KV
Mounting On DIN Rail IS / IEC 60715
Ambient Temperature Max -25°C...+70°C
Build In Width 35.6 Mm
Installation Position Vertical / Horizontal
Standard IS 12640-1 / IEC 61008-1
Body Color RAL 7035
Knob Color RAL 7005
Body Finish Matt Finishing
ON Indication Red
OFF Indication Green
Manufactured By(Firm Name) WALSUN ELECTRIC (INDIA)
Manufacturing Location NARAINA INDUSTRIAL AREA- DELHI
