Orient Electric

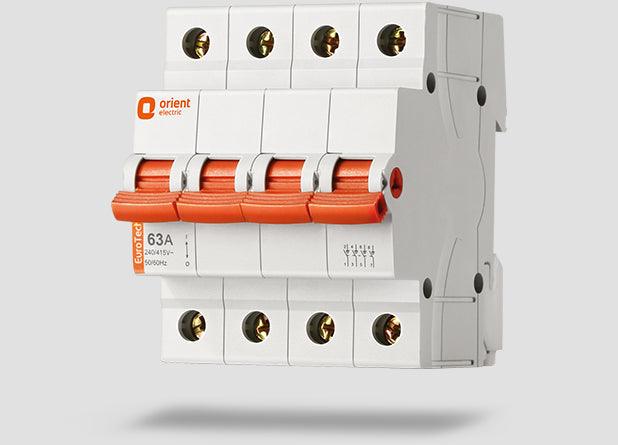

Orient introduces the new EuroTech range of Isolator's rating from 40A to 125A as per standards IEC 60947-1. They are switch disconnectors with independent manual operation capable of making and carrying currents under normal circuit conditions which may include operating overload conditions and also carry currents under specified abnormal circuit conditions such as those of short circuit for a specified time. The range offers a variety of features like Sealing Cover, Bi connect on both side, Positive Contact Indication, Device lock, User friendly terminal design, Easy and simple mounting and replacement, Field fittable Auxiliary Contacts and Air Circulation design (When two poles are placed adjacent to each andnbspother the cha nnels between two poles form a tunnel resulting in very effective air circulation around individual poles)
Rights and responsibility of Orient Electric Limited ("Company") in relation to collection, use, storage, retention and destruction of Personal data of any individuals from European Union ("EU") or European Economic Area ("EEA") ("EU residents") who voluntarily submit their Personal Data on the Company website, is set out under the Privacy Policy of the Company, which is to be reviewed by EU residents and provide explicit consent to the same before submission of the Personal Data on the website of the Company. EU residents have a right to withdraw the consent by sending a withdrawal request to the Company at privacy.officer@orientelectric.com. I hereby confirm that I have read and understood the terms of the Privacy Policy of the Company and I hereby give my consent to the Company to collect, use, process, store, retain and destroy my Personal Data for as long as it is necessary to fulfil the purpose for which it was collected, and for satisfying any legal, business, accounting or reporting requirements or as required by relevant laws. I hereby reserve the right to withdraw my consent as per the terms of the Privacy Policy of the Company.
| Rated Voltage (Ue) | 240/415 V AC |
| Rating | 40A |
| Short-Circuit Capacity (Icm) | 630A Upto 63A, 1.25kA Upto 125A |
| Terminal Capacity | 1-50mm2 |
| Ambient Temperature | Max -25C...+55C |
| Standard | IEC 60947-3 |
| Mounting On The Rail (Ics) | IEC 60715 |
| Rated Frequency (F) | 50 Hz |
| Index Of Protection (IP) | IP20 (IP40) |
| Dielectric Strength | 2000 V |
| Build In Width (Icw) | 18 Mm/Pol |
| Body Color | RAL 7035 |
| Knob Color | Red |
| Body Finish | Matt Finishing |
| Air Circulation Design | Yes |
| Manufactured By(Firm Name) | Orient Electric Limited |
| Manufacturing Location | D-209,Noida |
