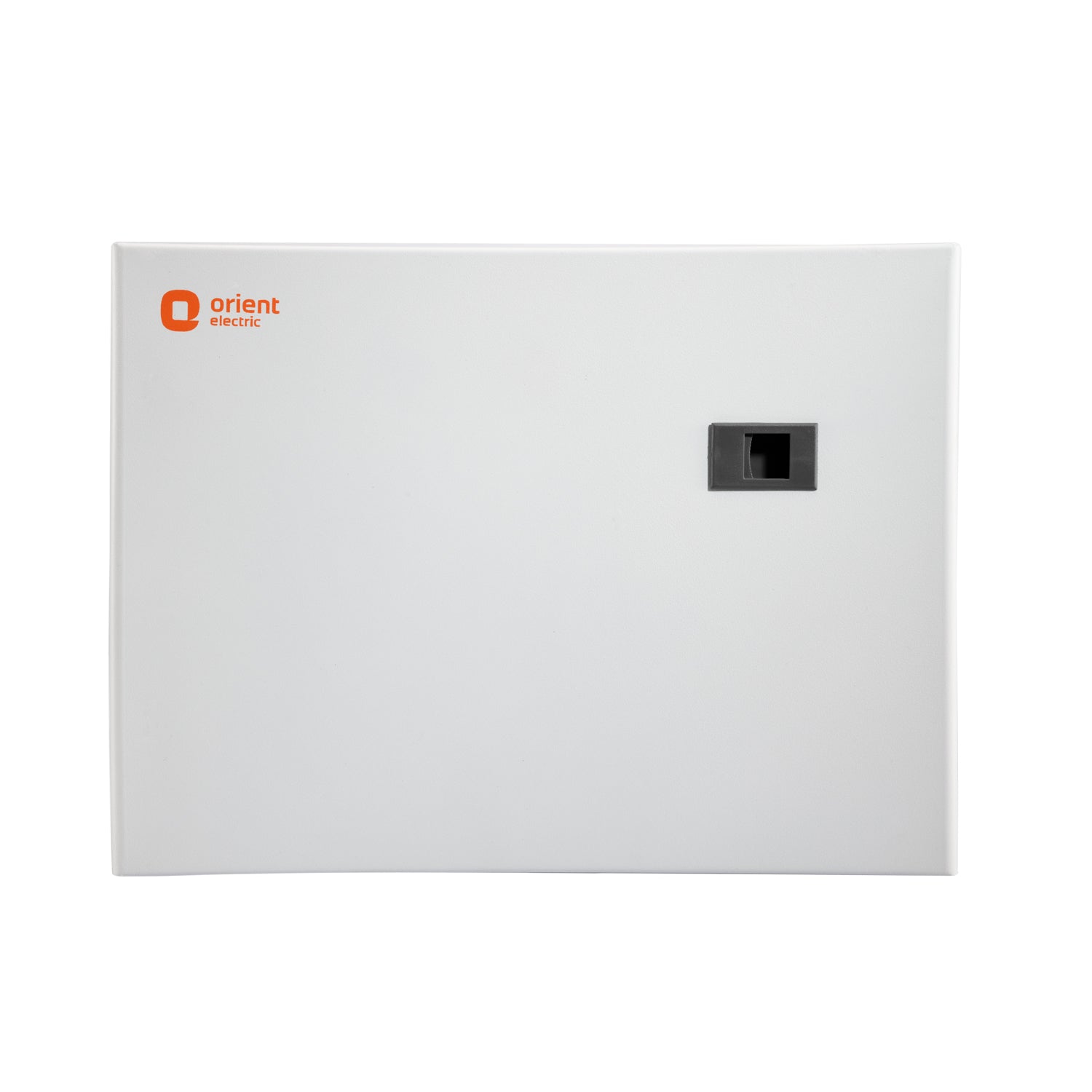

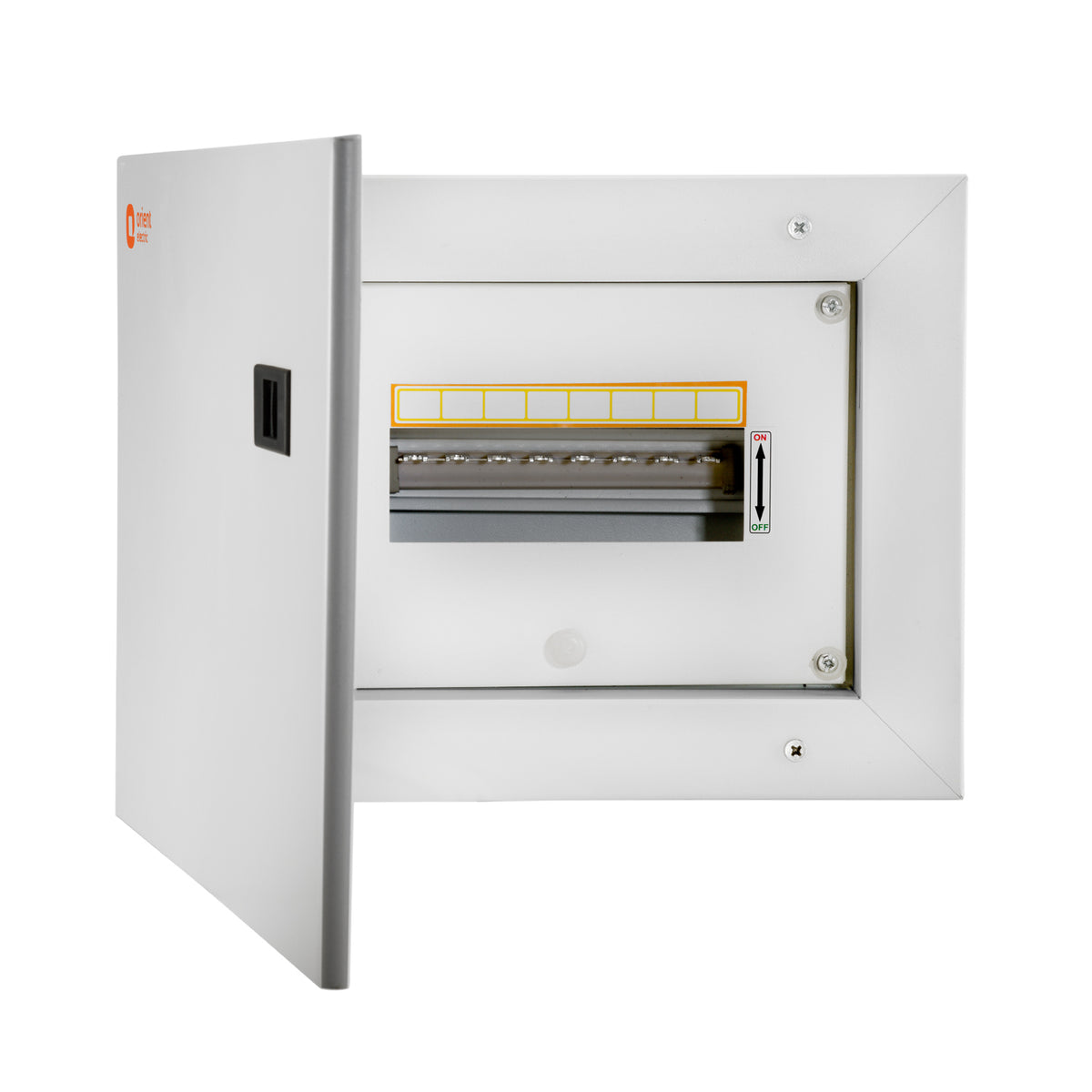

Canvas 'O' Horizontal Double Door SPN 4W
Distribution Board/Box
Orient Electric
Canvas 'O' Horizontal Double Door SPN 4W
Distribution Board/Box
Regular price
₹2,716
Sale price
From
₹2,716
₹2,716
₹2,716
₹2,716
₹2,716
Regular price
MRP:
₹3,426
21% off
Unit price
per
Inclusive of all taxes
Couldn't load pickup availability
Offers
Shipping & Delivery
Check delivery details in your areaBuy in Bulk
Looking to make bulk purchases?
Product Highlights

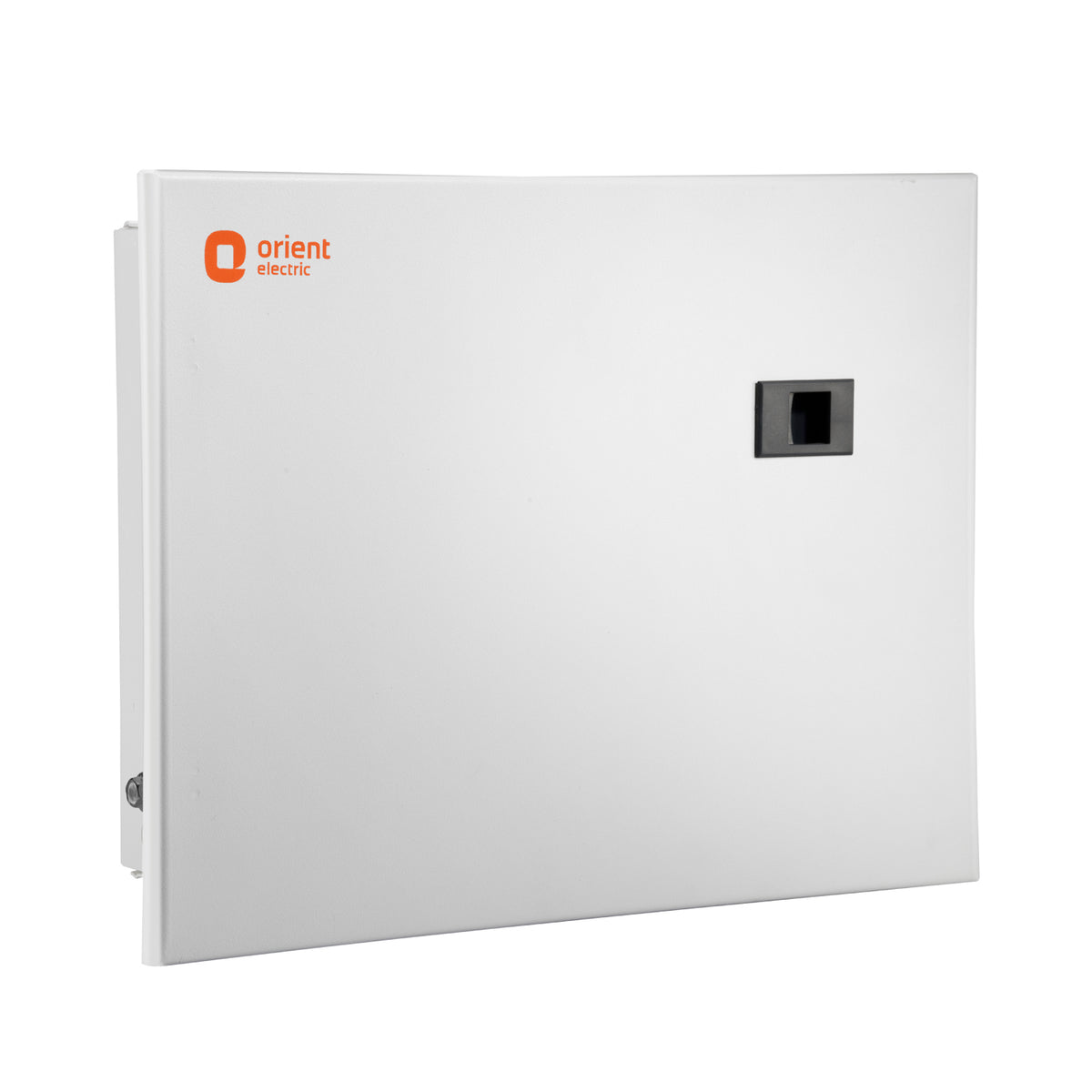

- Premium Aesthetics - Designed with a slim profile and minimal wall projection, Canvas O features a seamless metal door and matte finish that blends effortlessly with modern interiors. A distribution board designed so well, you never feel the need to hide it.
- Smart Construction for Easy Maintenance - Canvas O’s 3 piece construction allows only the intermediate plate to be removed during servicing, without disturbing the door alignment or damaging surrounding plaster or paint. The independent door & shield design further enables shield removal during maintenance without removing the entire DB body.

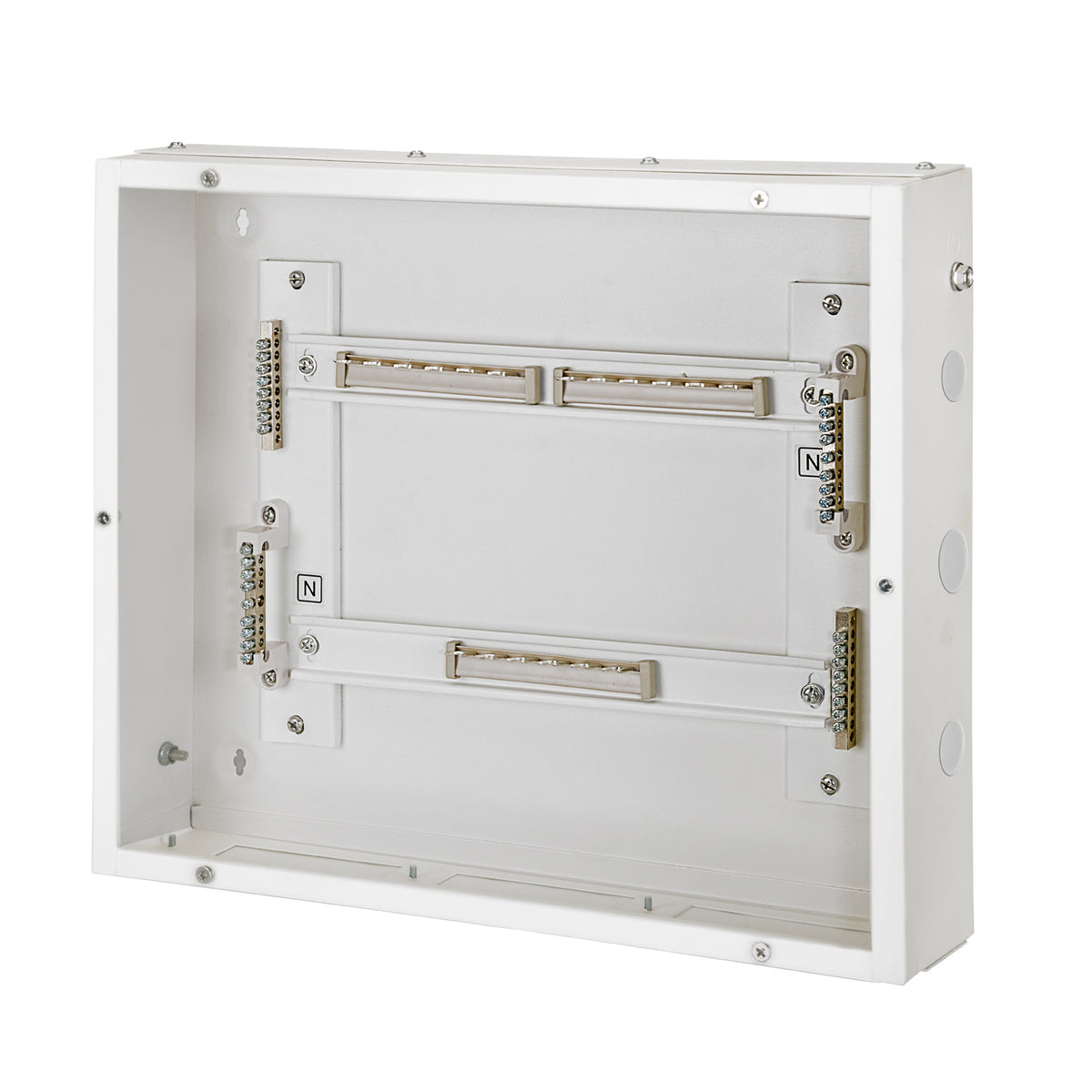

- Convenient Installation Removable, Pan & Mounting Options - The removable pan assembly allows the chassis to be wired comfortably outside the DB and refitted afterward, ensuring quicker and cleaner installation.

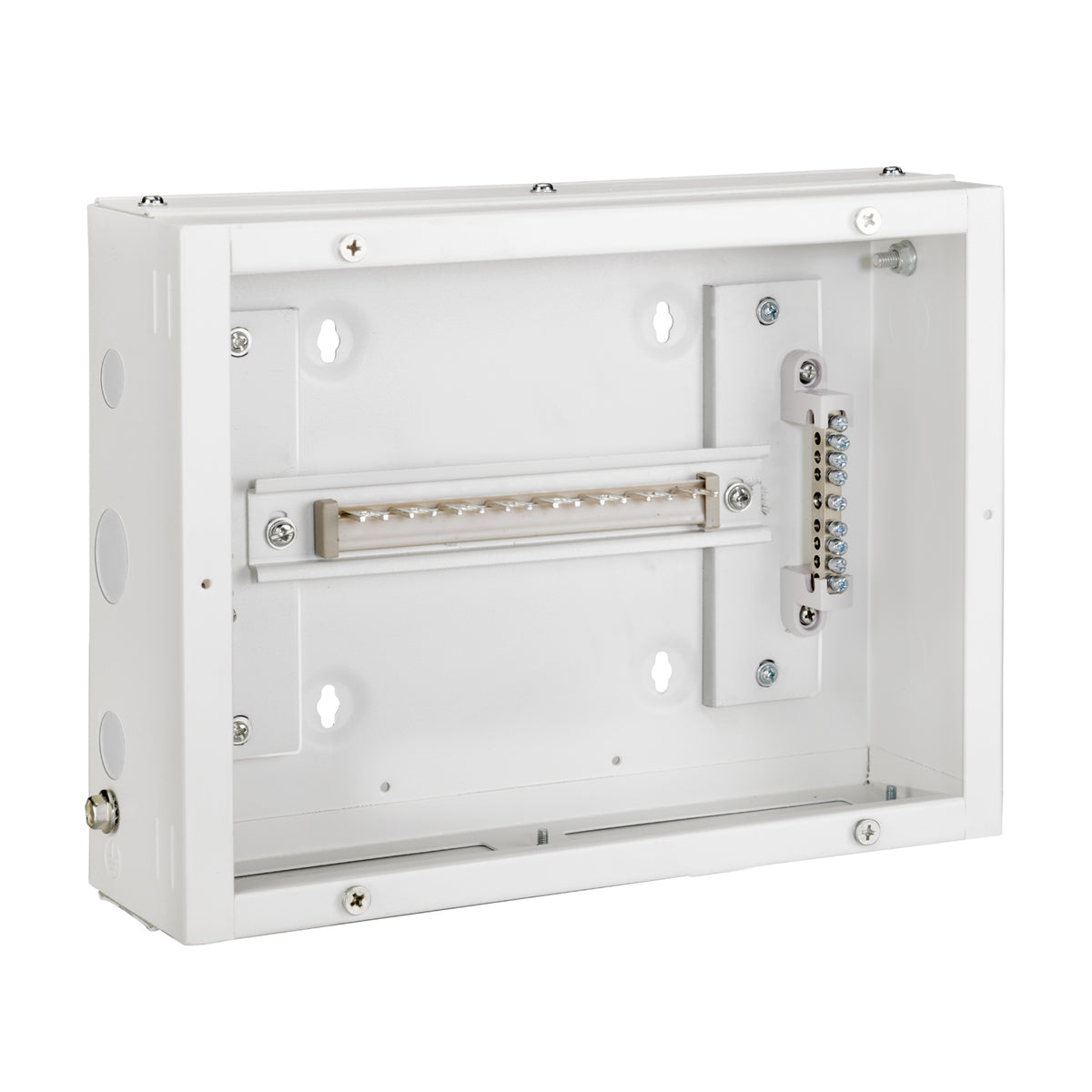

- Cable Entry Flexibility & Detachable Gland Plates - Detachable gland plates with various knockout sizes at the top and bottom enable easy cable entry and exit. This allows removal of the entire plate from the incoming and outgoing terminals for smooth and efficient installation.
- Ample Wiring Space - Canvas O provides generous internal space for routing neutral and earth wires neatly and safely, ensuring efficient load distribution and simplified wiring management.

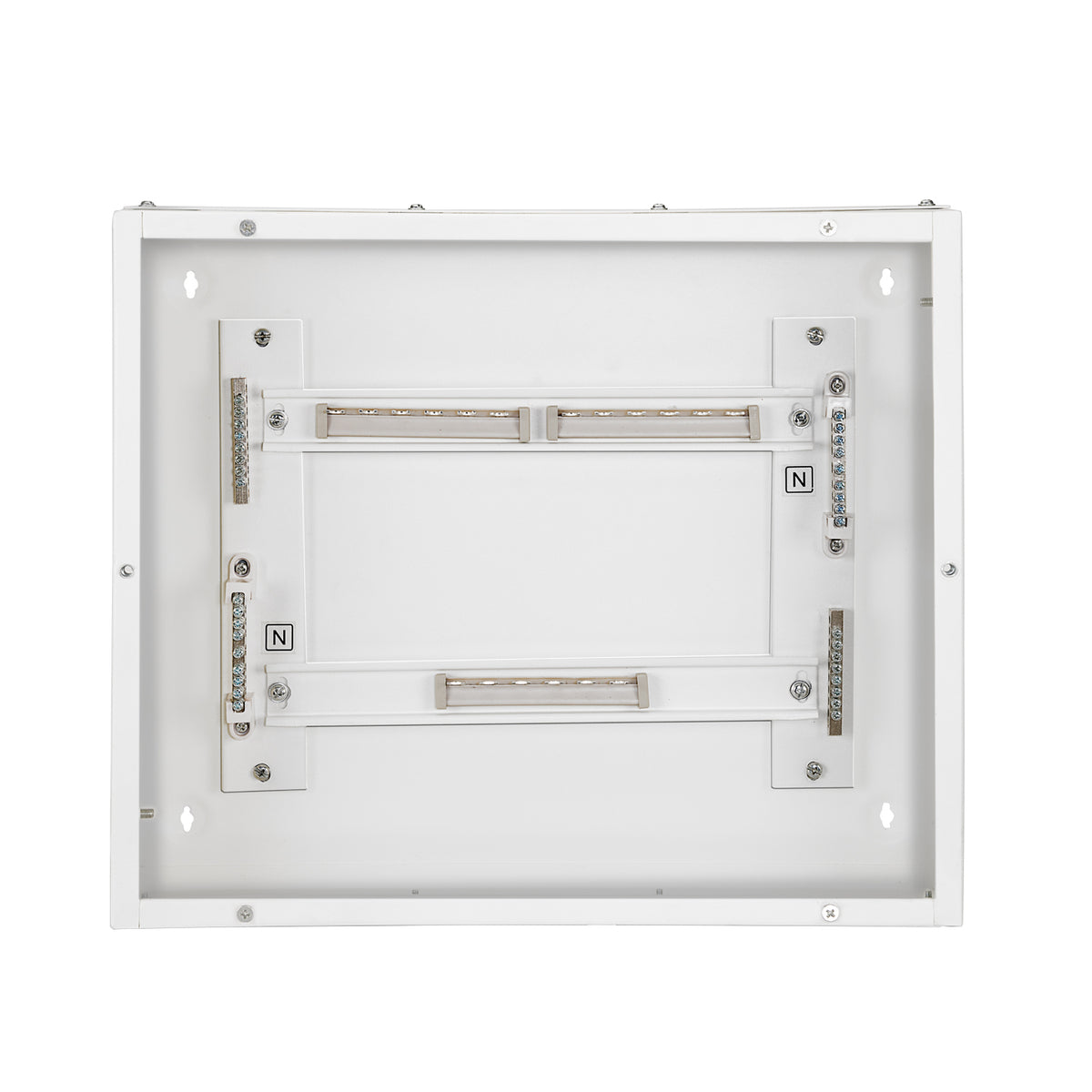

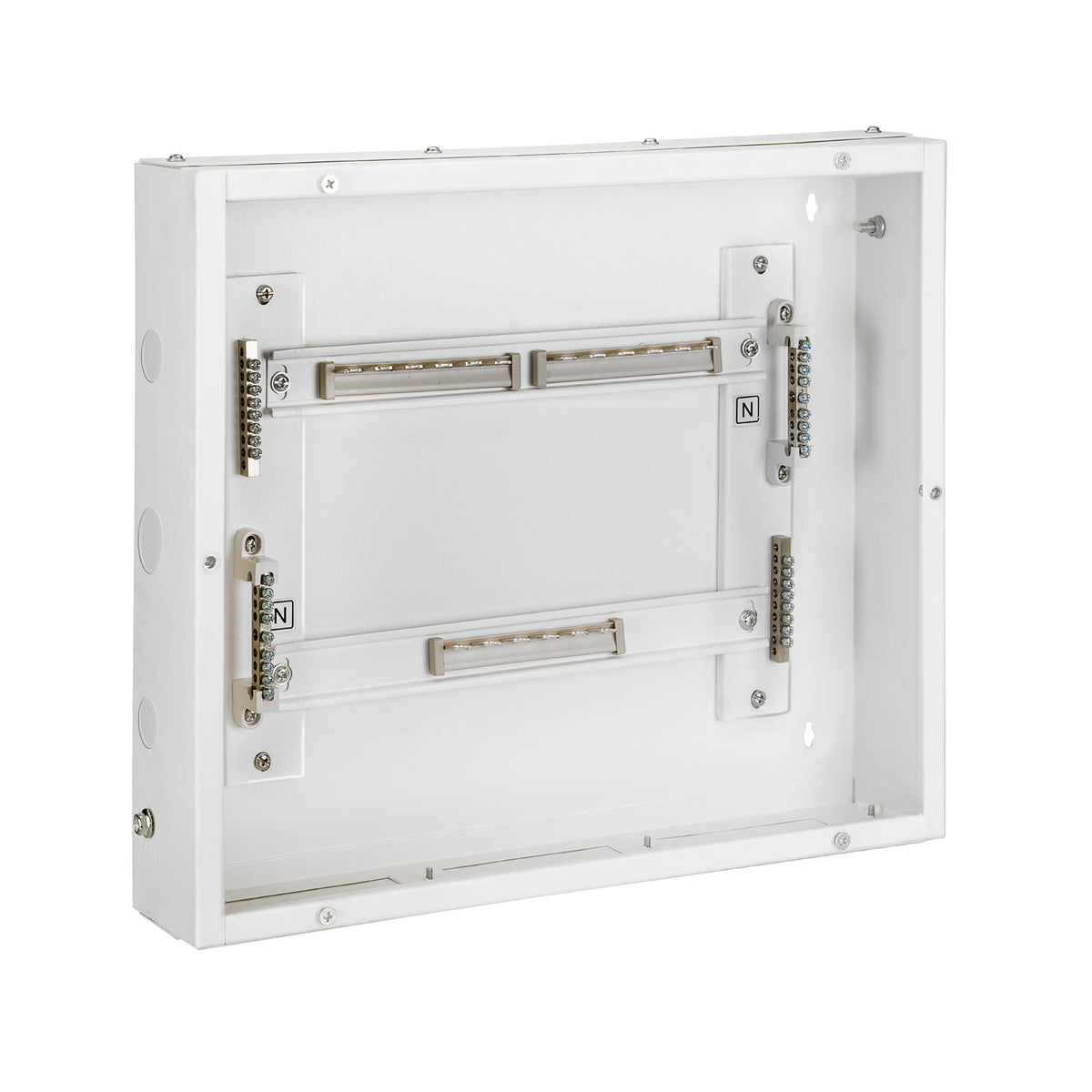

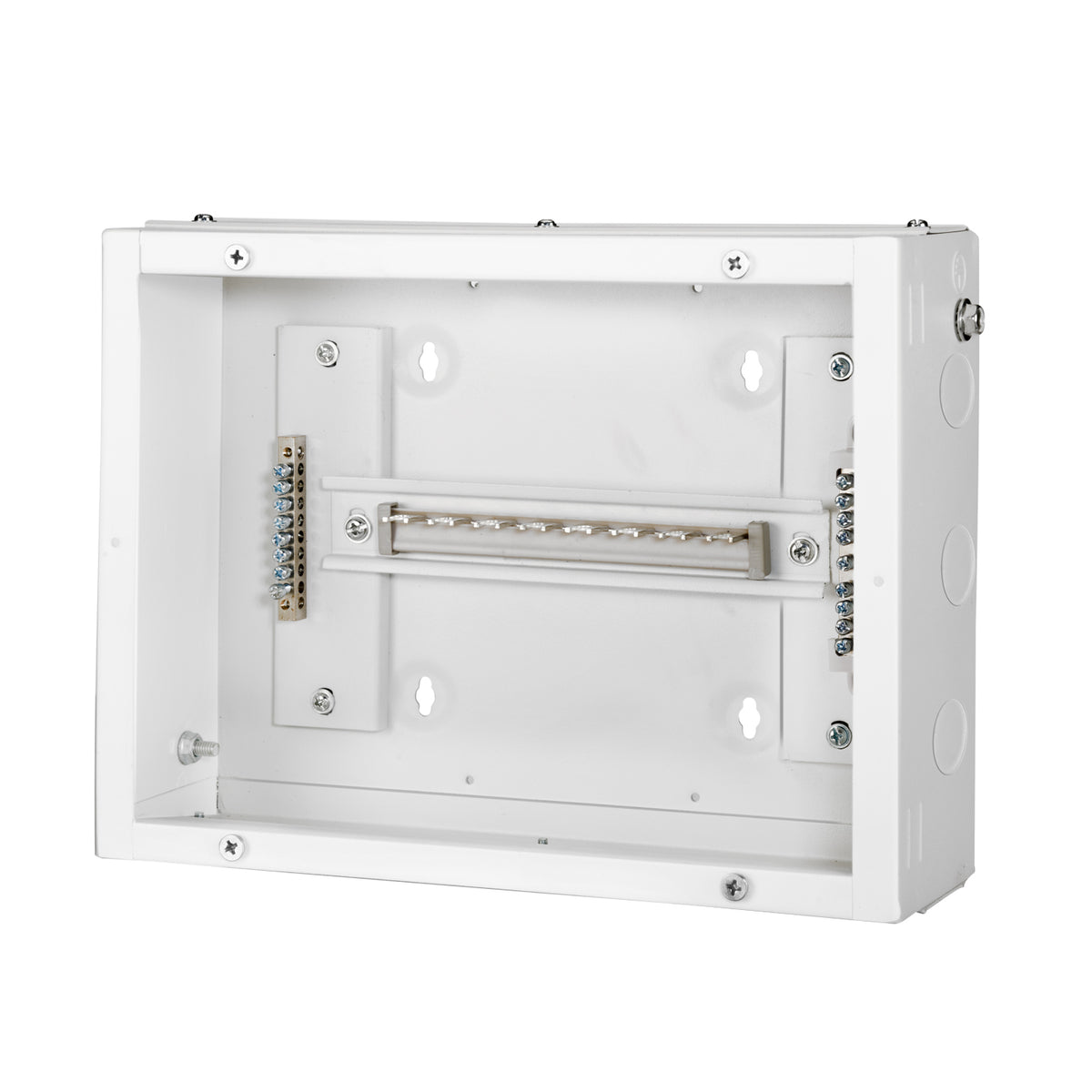

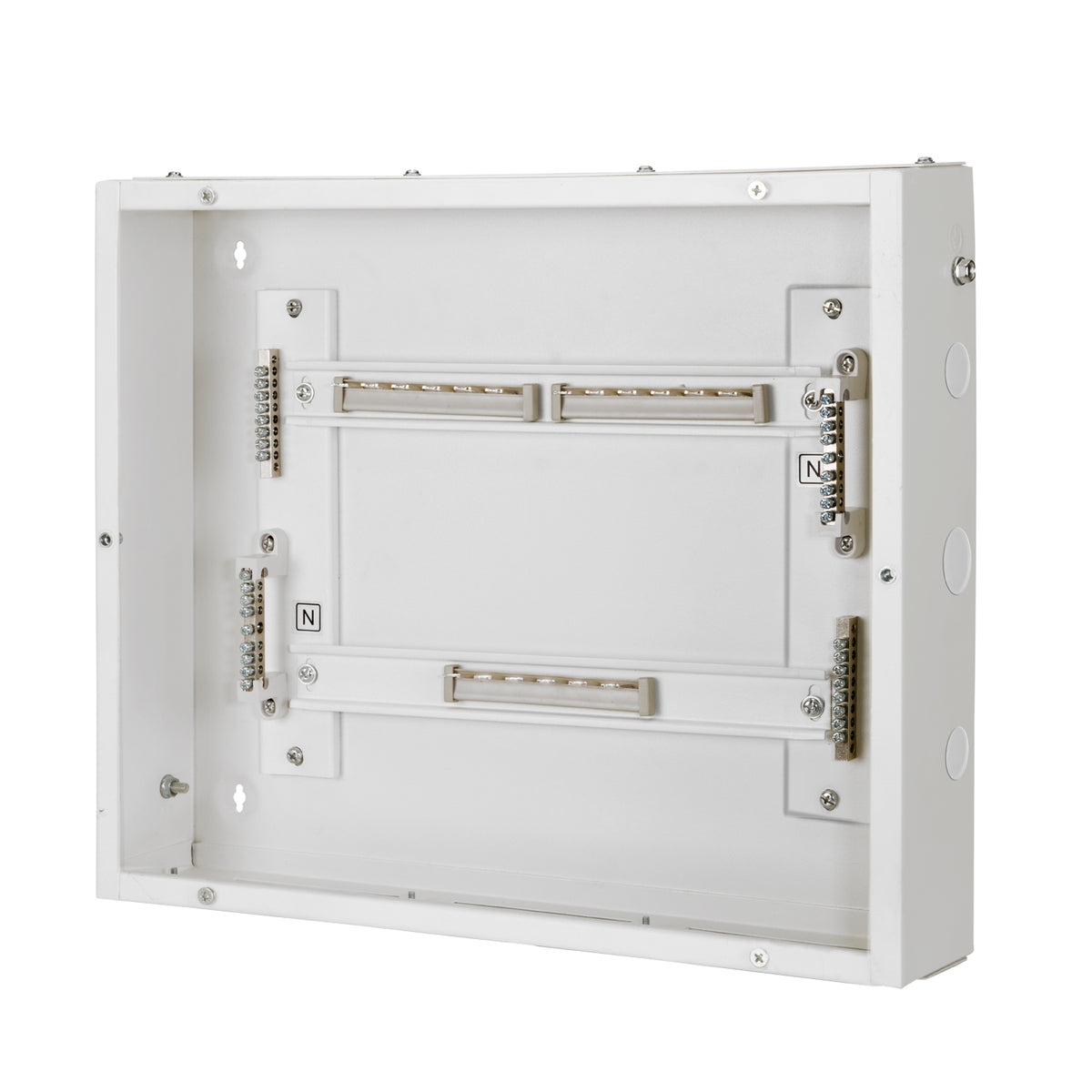

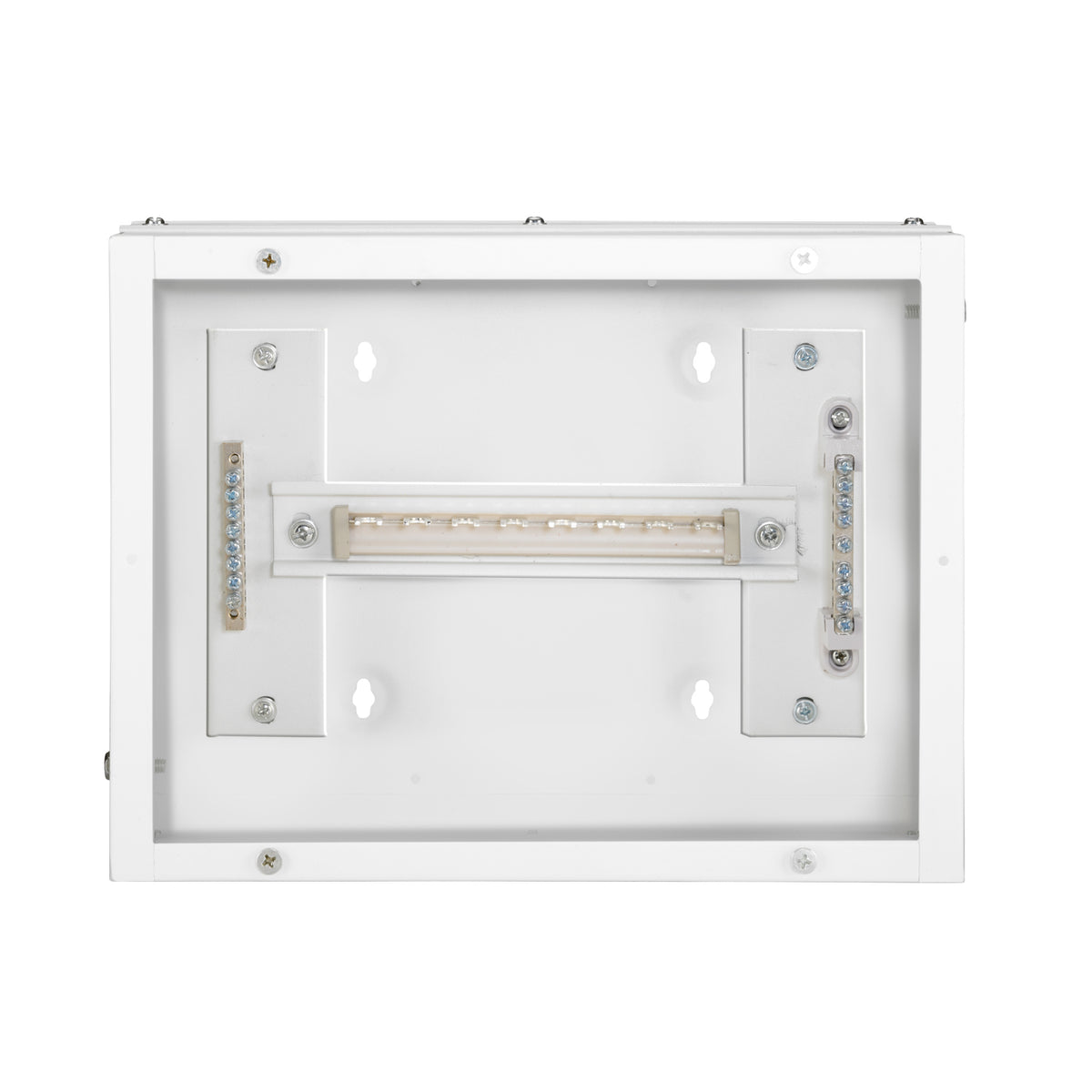

- Insulated copper busbar (100A rated) - Equipped with insulated 100A rated copper busbars, the DB ensures reliable and safe performance. Each unit includes an RYBN wire set and cable ties for improved cable organisation and a cleaner internal layout.
- Clear identification & easy handling - Pozidriv screws ensure smooth removal and fastening. Identification labels simplify circuit marking. A dedicated front plate stud allows easy lifting of the front plate during inspection or wiring.
- Enhanced earthing safety - Embossed earthing markings provide instant identification, while the stainless steel earthing screw prevents rusting and ensures long lasting safety and performance.
- High quality construction & corrosion protection - Fabricated using CRCA grade D steel and treated with a 9 tank anti rust pretreatment process, Canvas O ensures superior strength, finish, and corrosion resistance.
- Sturdy designed distribution boards with 1.2mm thickness
View full details
Regular price
₹2,716
Sale price
From
₹2,716
₹2,716
₹2,716
₹2,716
₹2,716
Regular price
MRP:
₹3,426
21% off
Unit price
per
Inclusive of all taxes
Product Specifications
Product Specifications
| Product | Canvas 'O' Horizontal Double Door |
| SKU / Part No. | 381SDDRG04T |
| Type | SPN |
| No. Of Ways | 4W |
| Door Type | Double Door |
| Rated Frequency (f) | 50 Hz |
| Insulation Voltage (Ui) | 690 V a.c |
| Type of Installation | Flush / Surface |
| Distribution Technique | Straight Insulated Busbar |
| Incomer | 2P MCB /RCCB /Isolator |
| Outgoing | 1P MCB |
| Material (Uimp) | CRCA Sheet Steel |
| Sheet Thickness (mm) | 1.0 mm |
| Removable Gland Plates | Top and Bottom |
| Busbar Rating | 100 A |
| Busbar Short Circuit Withstand (Icw) | 5 kA for 0.1 second |
| Busbar Conditional Short Circuit | 10 kA |
| Neutral Bar Terminal Capacity | 1-16mm2 |
| Earth Bar Terminal Capacity | 1-16mm2 |
| Index of Protection (IP) | IP 30 / IP 42 |
| Impulse withstand voltage (Uimp) | 4 kV |
| Ambient Temperature | Max -5°C...+55°C |
| Standard | IS 8623 ; IS 13032 ; IEC 61439-3 |
| Body color | Light Grey (RAL 7035) |
| Body Finish | Texture Finishing |
| Knob color | Grey (RAL 9005) |
| Accessories Included | Busbar, Neutral Bar, Earth Bar, Wire Set, Hardware Screws, Auxiliary Signal Switch, Terminal Cover, Outgoing Label |
| Net Quantity | 1 Unit |
| Country of Origin | India |
| Packed and Marketed By | Orient Electric Ltd. |
| Included Components | 1 Unit |
