N' Series SPN Single 4W

Distribution Board/Box

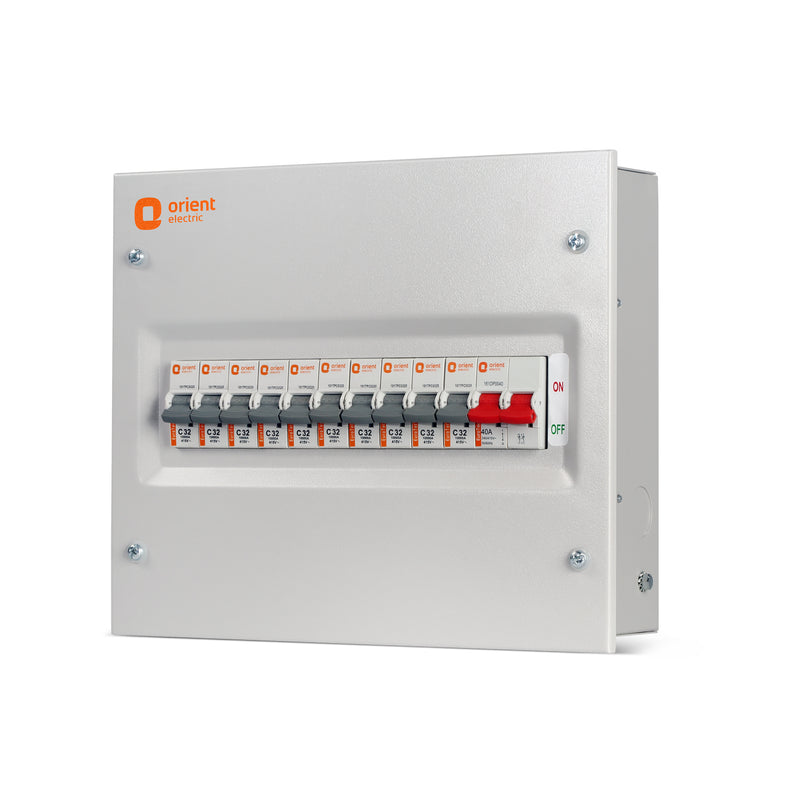

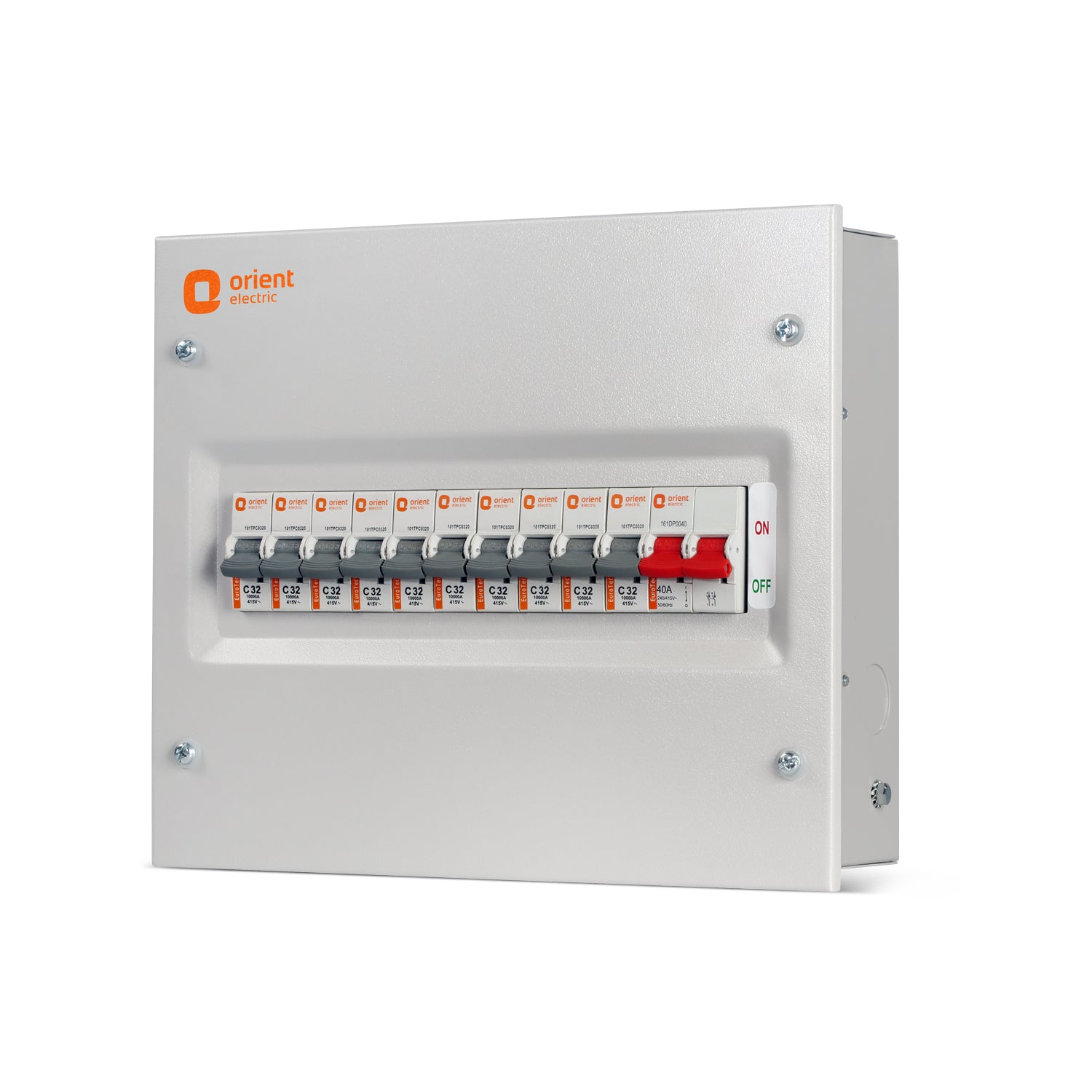

  • Single 4W N' Series SPN Distribution Board - single door, front view - Orient Electric
    Single 4W N' Series SPN Distribution Board - single door, front view - Orient Electric

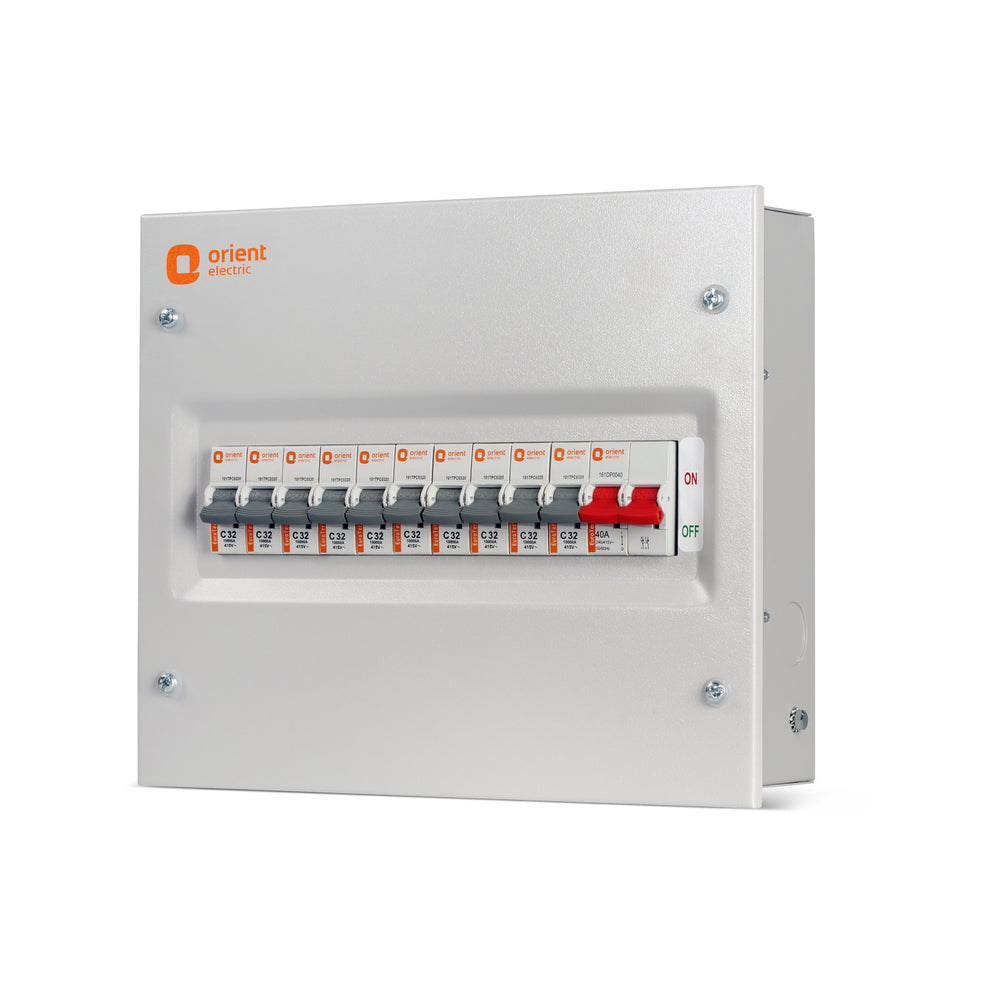

  • Single 6W N' Series SPN Distribution Board - single door, front view - Orient Electric
    Single 6W N' Series SPN Distribution Board - single door, front view - Orient Electric
  • Single 8W N' Series SPN Distribution Board - single door, front view - Orient Electric
    Single 8W N' Series SPN Distribution Board - single door, front view - Orient Electric
  • Single 10W N' Series SPN Distribution Board - single door, front view - Orient Electric
    Single 10W N' Series SPN Distribution Board - single door, front view - Orient Electric
  • Single 12W N' Series SPN Distribution Board - single door, front view - Orient Electric
    Single 12W N' Series SPN Distribution Board - single door, front view - Orient Electric
  • Single 14W N' Series SPN Distribution Board - single door, front view - Orient Electric
    Single 14W N' Series SPN Distribution Board - single door, front view - Orient Electric
  • Single 16W N' Series SPN Distribution Board - single door, front view - Orient Electric
    Single 16W N' Series SPN Distribution Board - single door, front view - Orient Electric
  • Double 4W N' Series SPN Distribution Board - double door, open door view - Orient Electric
    Double 4W N' Series SPN Distribution Board - double door, open door view - Orient Electric
  • Double 6W N' Series SPN Distribution Board - double door, open door view - Orient Electric
    Double 6W N' Series SPN Distribution Board - double door, open door view - Orient Electric
  • Double 8W N' Series SPN Distribution Board - double door, open door view - Orient Electric
    Double 8W N' Series SPN Distribution Board - double door, open door view - Orient Electric
  • Double 10W N' Series SPN Distribution Board - double door, open door view - Orient Electric
    Double 10W N' Series SPN Distribution Board - double door, open door view - Orient Electric

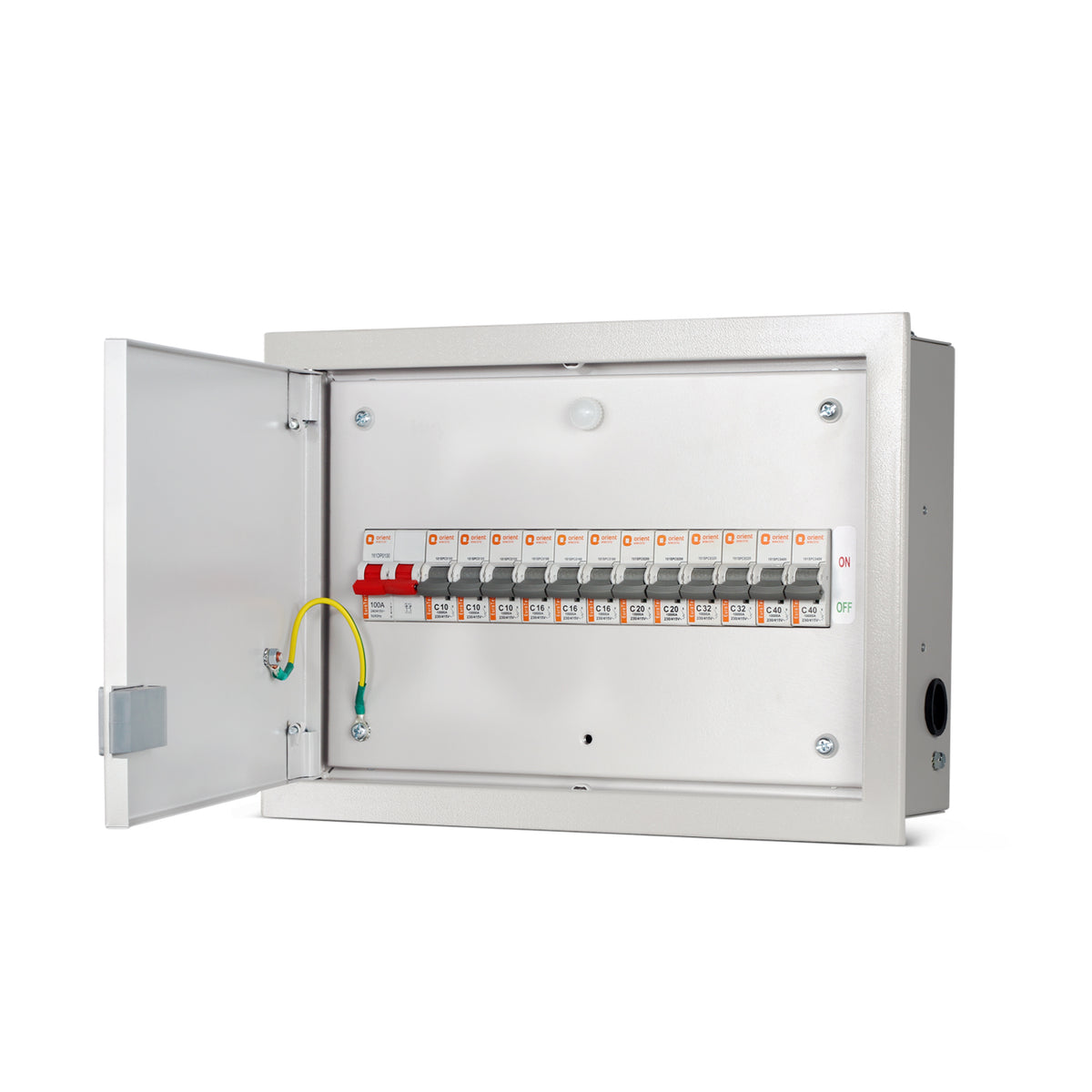

  • Double 12W N' Series SPN Distribution Board - double door, open door view - Orient Electric
    Double 12W N' Series SPN Distribution Board - double door, open door view - Orient Electric
  • Double 14W N' Series SPN Distribution Board - double door, open door view - Orient Electric
    Double 14W N' Series SPN Distribution Board - double door, open door view - Orient Electric
  • Double 16W N' Series SPN Distribution Board - double door, open door view - Orient Electric
    Double 16W N' Series SPN Distribution Board - double door, open door view - Orient Electric
1 17

Orient Electric

N' Series SPN Single 4W

Distribution Board/Box
₹1,283
From ₹1,283 ₹1,283 ₹1,283 ₹1,283 ₹1,283 MRP: ₹1,619
21% off

Inclusive of all taxes
Select Door
Select Way

Offers

Business Offer

Save 18% (Calculating..) On Business Purchase With GST Invoice

Orient GST Offer

Orient Electric offers customized purchasing solutions for registered business owners by providing GST invoices. Each purchase includes a business GST invoice of your company/organization name and GST number.

Terms & Conditions

  • Enter your valid GST Number during checkout on the website.
  • Billing Name and Address should be same as exactly mentioned in GST registration certificate.
  • Shipping address and Billing address must be of the same State.
  • Ensure your GST number is valid. B2B invoice will not be generated without it.
  • In case of non-compliance with the above points, a B2C/Unregistered invoice will be issued, and no rectification can be made in the future in the invoice.

Shipping & Delivery

Check delivery details in your area

Buy in Bulk

Looking to make bulk purchases?

Product Highlights
  • Clean design & easy installation - The n series is crafted with smooth contours and a refined interior layout, giving your space a tidy, modern appearance. Visual alignment markers on the body make it simple for installers to position the board accurately within the wall, ensuring a perfect flush finish every time.
  • Smarter wiring convenience - Inside the DB offers generous wiring space that allows cables to spread naturally without stress, even in high circuit applications. Embossed markings clearly indicate cable entry points, guiding installers to route wires correctly and safely. Front plate lifting studs make access effortless during both installation and routine servicing.
  • Safety driven construction - Every aspect of the n series prioritizes safe performance. The independent door shield prevents the door from disturbing internal components during maintenance, supported by a stainless steel stopper that maintains precise alignment.
  • Clear circuit identification & service clarity - The DB includes a clean labelling strip so each circuit can be clearly marked for quicker understanding and faster troubleshooting. Blank plates are supplied to secure unused modules and allow future expansion. An internal circuit diagram provides a quick reference for installers, helping eliminate wiring errors and ensuring a consistent layout across sites.
  • Practical user access & maintenance ease - Thoughtfully recessed screw slots make removal of the DB front easier during service calls, without damaging the outer surface. Multiple knockout options support concealed wiring, ensuring a neater finish while allowing flexibility in cable routing and conduit entry.
  • Secure locking & structural strength - The n series comes with a compact lock and key system that sits flush with the surface, offering clean aesthetics along with dependable access control. Optional base and collar plates enhance wall fitment and stability, especially where wall depths vary, ensuring the distribution board sits firmly and looks uniform.
  • Ready for upgrades & fast servicing - The removable pan design allows easy access to each individual circuit protection device without disturbing the rest of the setup. This makes repairs, upgrades, or replacements quicker and safer. Knockouts for accessories and conduits enable different wiring configurations, making the system adaptable to changing electrical needs.
share View full details
₹1,283
From ₹1,283 ₹1,283 ₹1,283 ₹1,283 ₹1,283 MRP: ₹1,619
21% off

Inclusive of all taxes

Product Specifications
Product N' Series SPN
SKU / Part No. 301SSDRG04T
Door Single
No. Of Ways 4W
Door Type Single Door
Rated Frequency (f) 50 Hz
Insulation Voltage (Ui) 690 V a.c
Type of Installation Flush / Surface
Material (Uimp) CRCA Sheet Steel
Removable Gland Plates Top and Bottom
Neutral Bar Terminal Capacity 1-16mm2
Earth Bar Terminal Capacity 1-16mm2
Impulse withstand voltage (Uimp) 4 kV
Ambient Temperature Max -5°C...+55°C
Standard IS 8623 ; IS 13032 ; IEC 61439-3
Net Quantity 1 Unit
Country of Origin India
Packed and Marketed By Orient Electric Ltd.
Included Components 1 Unit
