Stella MCB Box TPN 12W

Distribution Board/Box

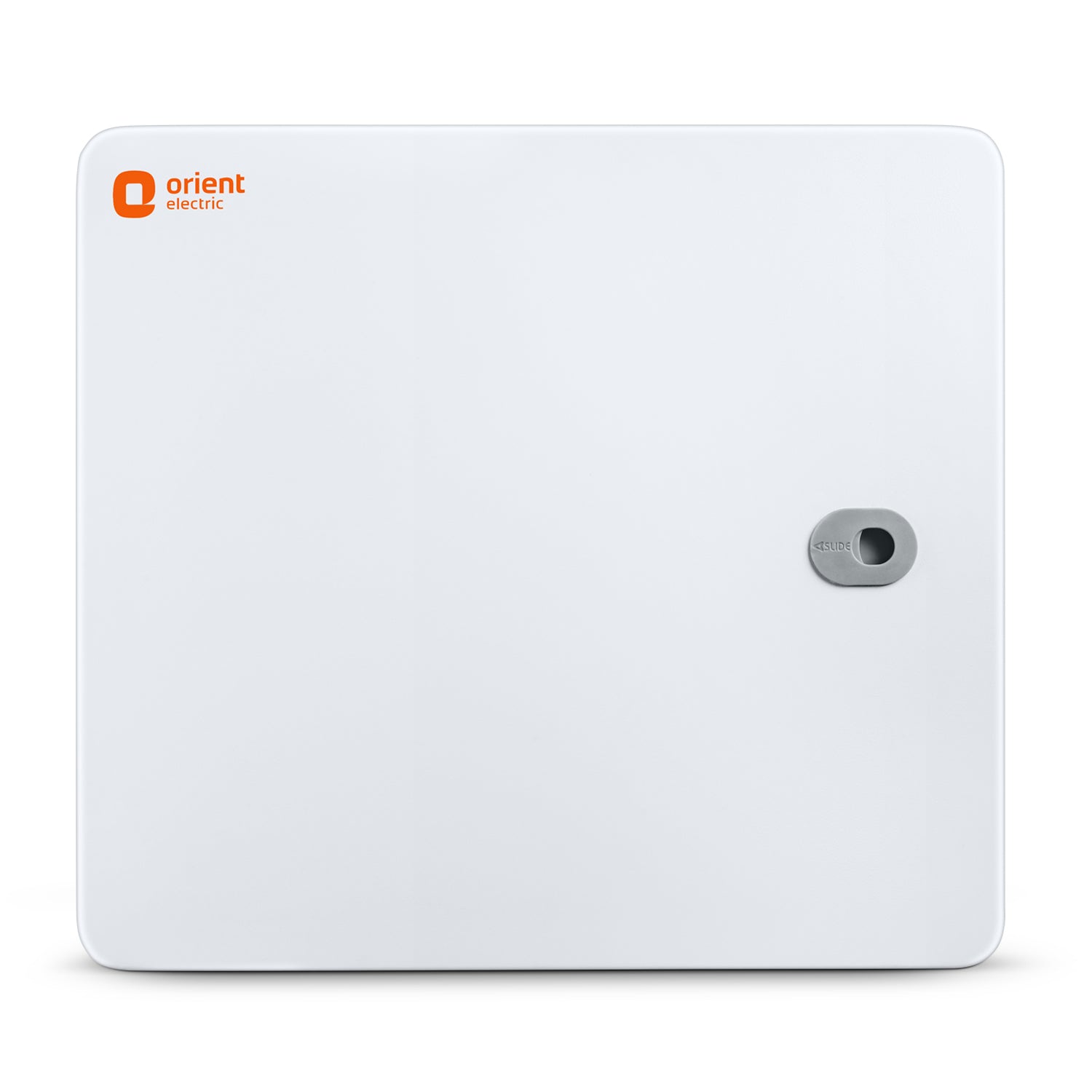

  • TPN 12W Stella MCB Box Distribution Board - front view, door closed - Orient Electric
    TPN 12W Stella MCB Box Distribution Board - front view, door closed - Orient Electric

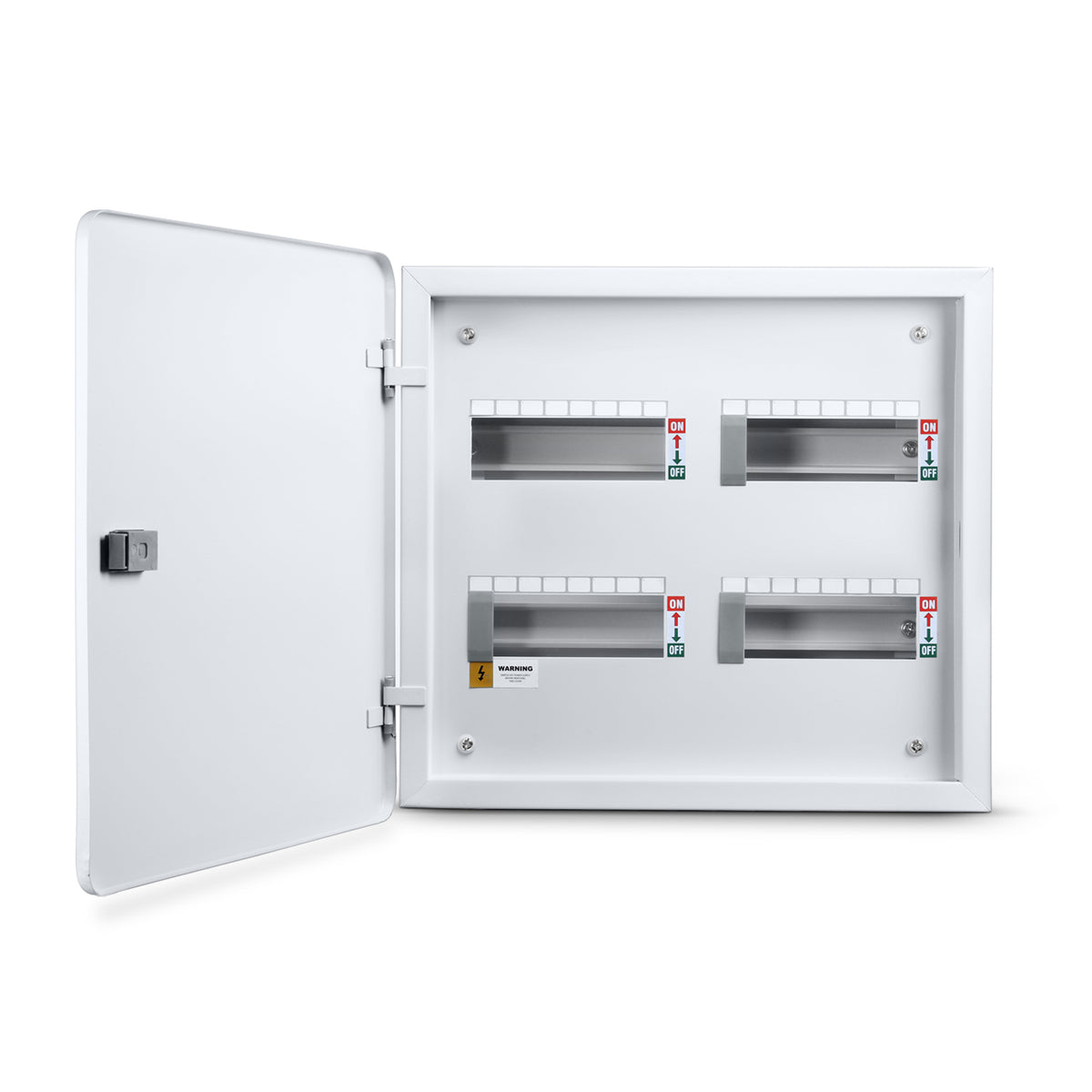

  • TPN 12W Stella MCB Box Distribution Board - open door view - Orient Electric
    TPN 12W Stella MCB Box Distribution Board - open door view - Orient Electric
1 17

Orient Electric

Stella MCB Box TPN 12W

Distribution Board/Box
₹8,321
From ₹8,321 ₹8,321 ₹8,321 ₹8,321 ₹8,321 MRP: ₹10,499
21% off

Inclusive of all taxes
Select Type
Select Way

Offers

Business Offer

Save 18% (Calculating..) On Business Purchase With GST Invoice

Orient GST Offer

Orient Electric offers customized purchasing solutions for registered business owners by providing GST invoices. Each purchase includes a business GST invoice of your company/organization name and GST number.

Terms & Conditions

  • Enter your valid GST Number during checkout on the website.
  • Billing Name and Address should be same as exactly mentioned in GST registration certificate.
  • Shipping address and Billing address must be of the same State.
  • Ensure your GST number is valid. B2B invoice will not be generated without it.
  • In case of non-compliance with the above points, a B2C/Unregistered invoice will be issued, and no rectification can be made in the future in the invoice.

Shipping & Delivery

Check delivery details in your area

Buy in Bulk

Looking to make bulk purchases?

Product Highlights
  • Premium aesthetics made to be seen, not hidden - With its slim profile, minimal wall projection, and seamless metal door, the Stella DB blends effortlessly with any interior. The matte finished front fascia adds a clean, modern touch that enhances the living space rather than interrupting it. A distribution board designed so well, you’ll never feel the need to hide it.
  • Insulated copper busbar for safe & efficient wiring - Orient Stella DBs come equipped with insulated copper busbars that enable quick, safe and organised installation. The busbars are rated for 100A, ensuring reliable performance for household and commercial loads. Each DB is also supplied with an RYBN wire set and cable ties, providing better cable management and a cleaner internal layout.
  • Ample wiring space - Stella DB offers generous internal space for neat routing of neutral and earth wires, ensuring safe and efficient distribution.
  • Cement protection sheet for clean & accurate installation - Orient Stella DB is provided with a cement protection sheet to safeguard the base during wall plastering and finishing work. Once all civil work is completed, simply remove the sheet before mounting the top cover. This ensures a clean fit, prevents debris from affecting alignment, and maintains the DB’s finish.
share View full details
₹8,321
From ₹8,321 ₹8,321 ₹8,321 ₹8,321 ₹8,321 MRP: ₹10,499
21% off

Inclusive of all taxes

Product Specifications
Product Stella MCB Box
SKU / Part No. 303TDDRG12T
Type TPN
No. Of Ways 12W
Rated Frequency (f) 50 Hz
Insulation Voltage (Ui) 690 V a.c
Type of Installation Flush / Surface
Distribution Technique Straight Insulated Busbar
Incomer 2P MCB /RCCB /Isolator
Outgoing 1P MCB
Material (Uimp) CRCA Sheet Steel
Sheet Thickness (mm) 1.0 mm
Removable Gland Plates Top and Bottom
Busbar Rating 100 A
Busbar Short Circuit Withstand (Icw) 5 kA for 0.1 second
Busbar Conditional Short Circuit 10 kA
Neutral Bar Terminal Capacity 1-16mm2
Earth Bar Terminal Capacity 1-16mm2
Index of Protection (IP) IP 30 / IP 42
Impulse withstand voltage (Uimp) 4 kV
Ambient Temperature Max -5°C...+55°C
Standard IS 8623 ; IS 13032 ; IEC 61439-3
Body color Light Grey
Body Finish Texture Finishing
Knob color Grey
Accessories Included Busbar, Neutral Bar, Earth Bar, Wire Set, Hardware Screws, Terminal Cover, Outgoing Label
Net Quantity 1 Unit
Country of Origin India
Packed and Marketed By Orient Electric Ltd.
Included Components 1 Unit
