Orient Electric

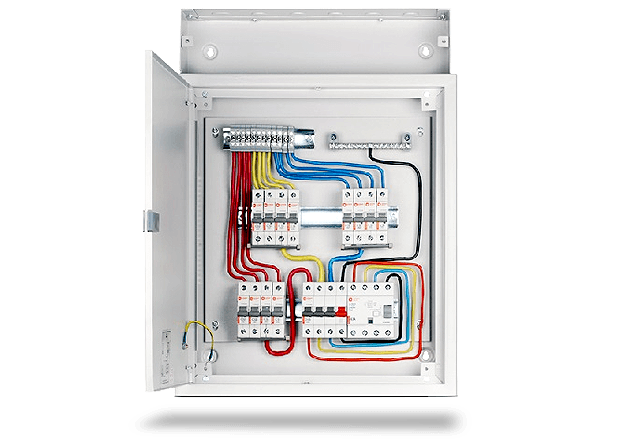

TPN Double Door Prewired Distribution Board With Cable 4 Way

Select Size

Product Description

Orient introduces a wide range of compact, elegant and economical EuroTech Distribution Boards with unique features and increased safety. The DB is not merely an enclosure but a comprehensive system in itself, comprising of copper bus bar, brass neutral links, earth links to facilitate effective distribution of current. The range offers a variety of feature benefits, such as Bus Bar Short time withstand capacity of 5kA for 0.1 second and Bus Bar Conditional Short circuit of 10kA in TPN DB in accordance with IS 13032, BS EN 60439-3, Ample space for wiring, compact design and proper distribution of neutral and earth wire.

Store Locator
View full details
Specifications
Rated Voltage (Ue) 240/415 VAC
Rated Frequency (F) 50 Hz
No. Of Ways 4 Way
Insulation Voltage (Ui) 690 V.A.C
Type Of Installation Flush / Surface
Distribution Technique Straight Insulated Busbar
Sub Incomer NA
Material (Uimp) CRCA Sheet Steel
Removable Gland Plates Top And Bottom
Busbar Short Circuit Withstand (Icw) 5 KA For 0.1 Second
Neutral Bar Terminal Capacity 1-16mm2
Index Of Protection (IP) IP 30 / IP 42
Ambient Temperature Max -5°C...+55°C
Incomer 2P MCB /RCCB /Isolator
Outgoing 1P MCB
Sheet Thickness (Mm) 1.2 Mm
Busbar Rating 100 A
Busbar Conditional Short Circuit 10 KA
Earth Bar Terminal Capacity 1-16mm2
Impulse Withsdtand Voltage (Uimp) 4 KV
Standard IS 8623 ; IS 13032 ; IEC 61439-3
Body Color Light Grey (RAL 7035)
Knob Color Jet Black (RAL 9005)
Body Finish Texture Finishing
Door Type Double Door
Manufactured By(Firm Name) Orient Electric Limited
Manufacturing Location D-209,Noida
