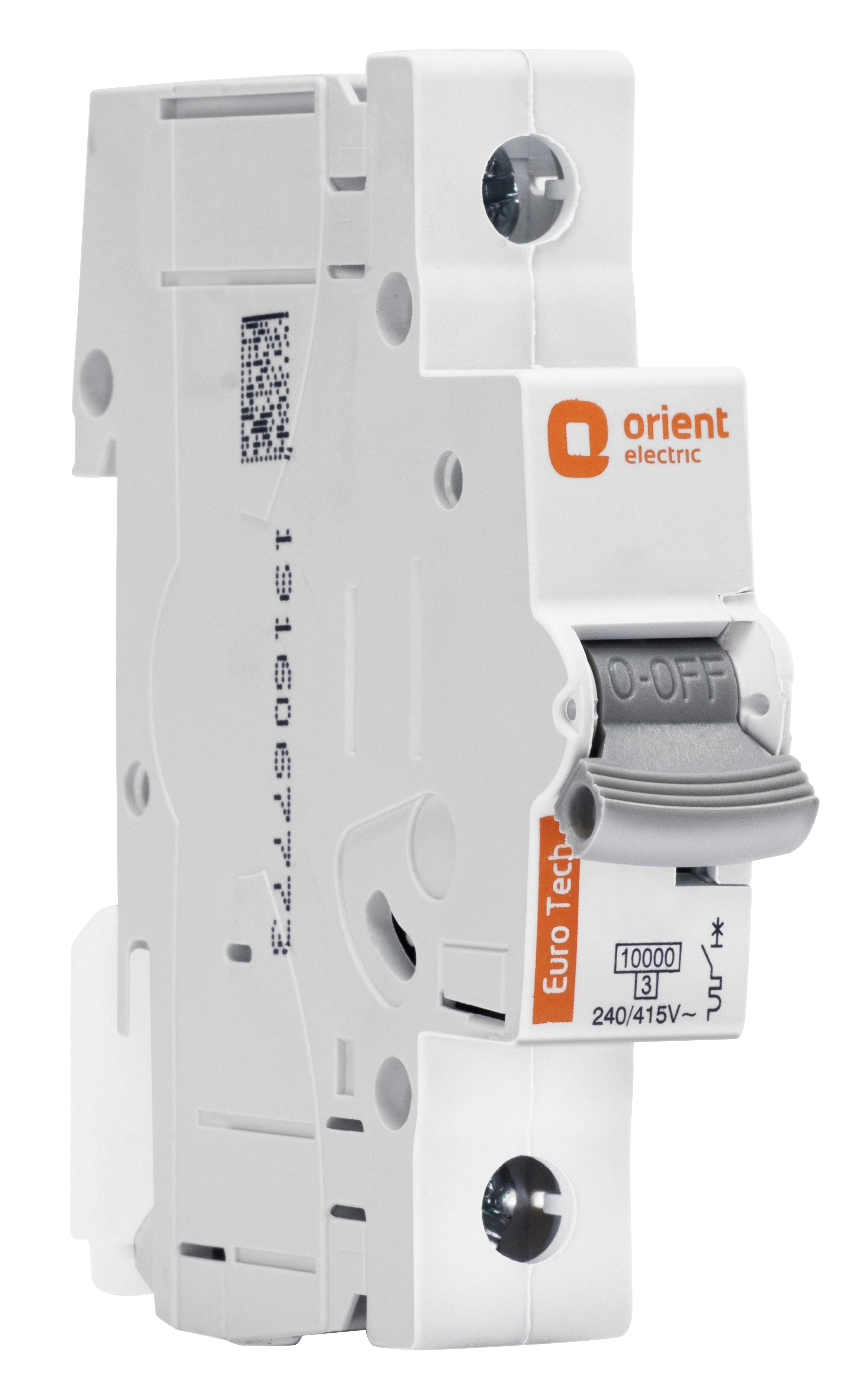

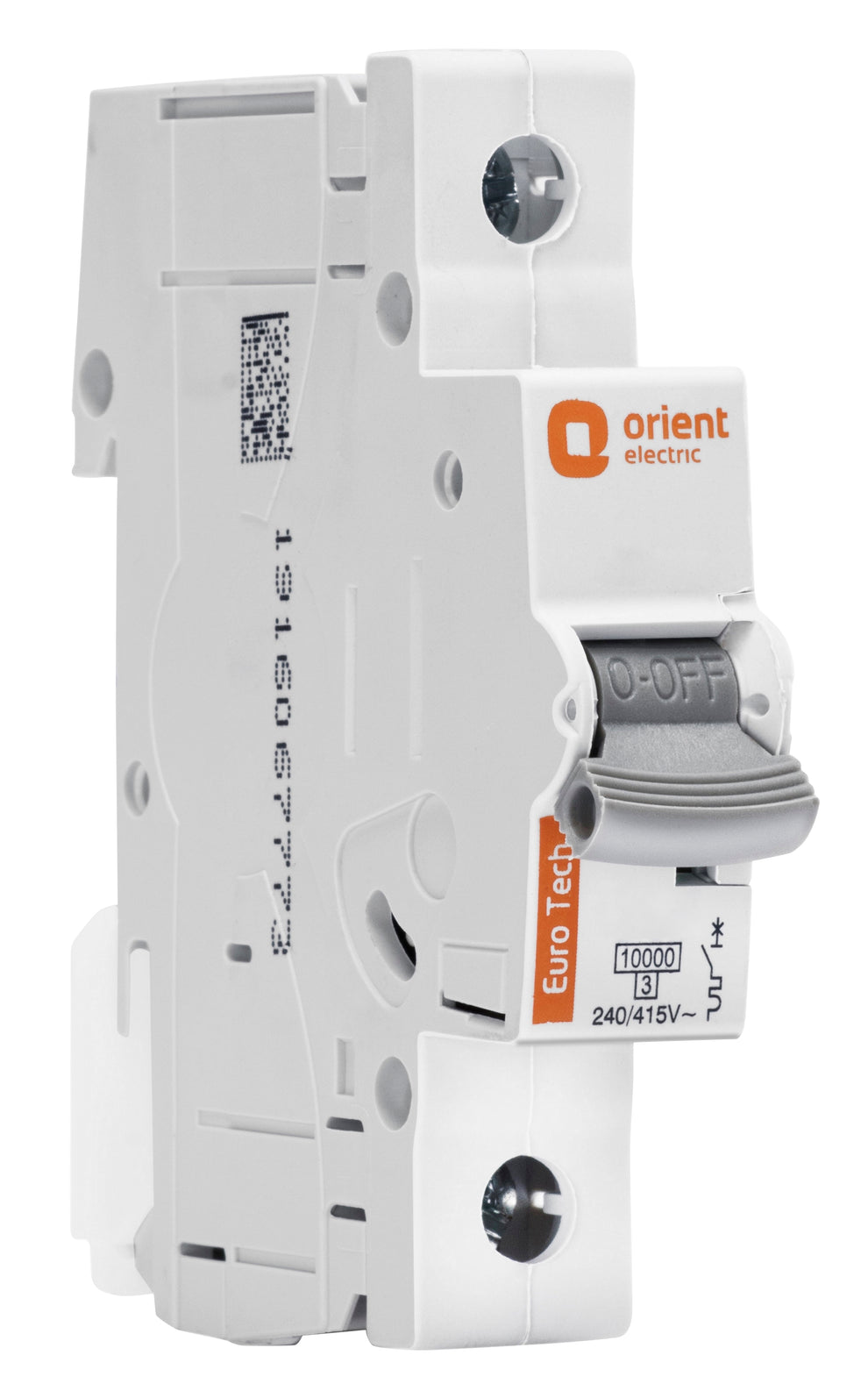

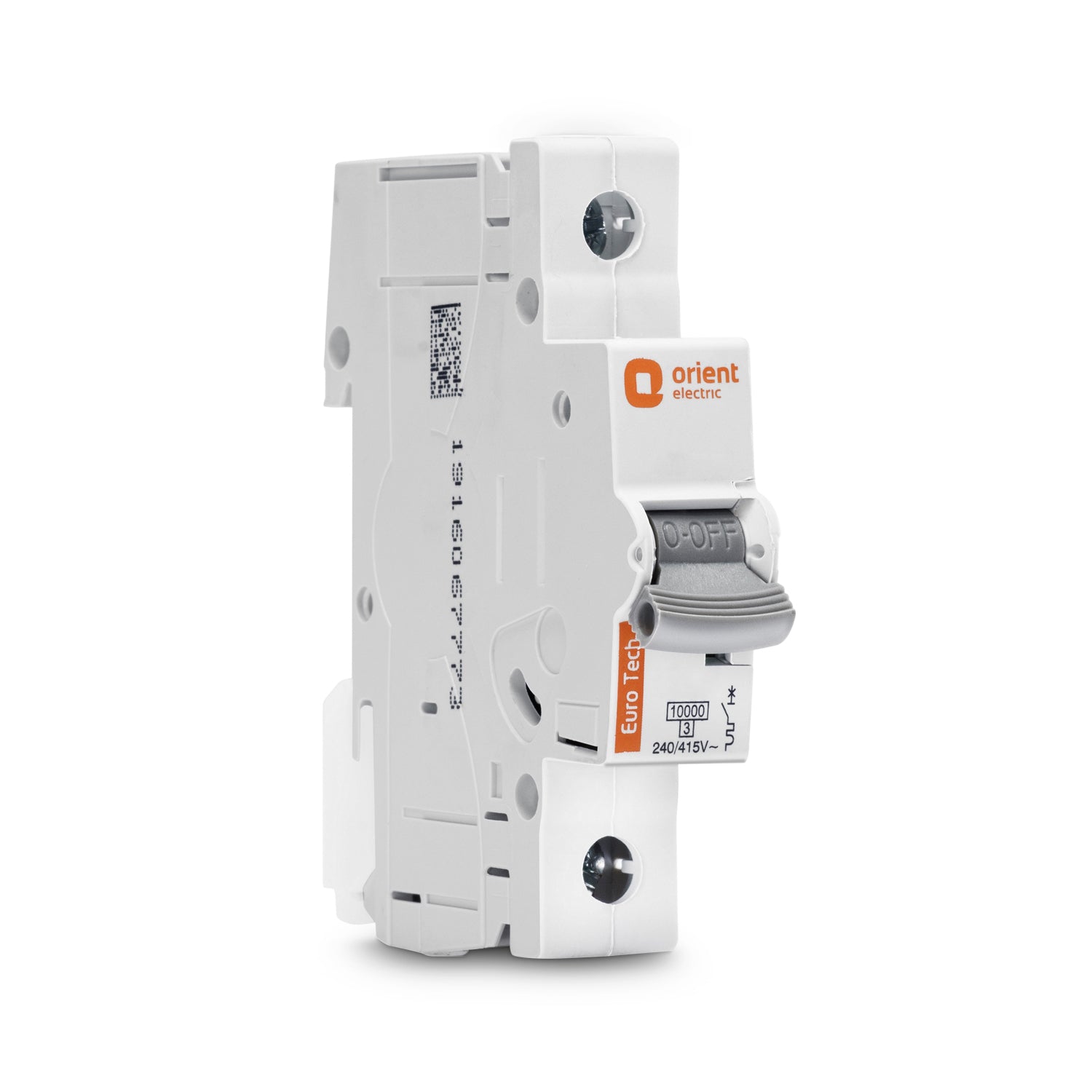

Eurotech MCB Single Pole - Curve B 6A

1 16

Orient Electric

Eurotech MCB Single Pole - Curve B 6A

₹259
From ₹259 ₹259 ₹259 ₹259 ₹259 MRP: ₹327
21% off

Inclusive of all taxes
Select Rating

Offers

Business Offer

Save 18% (Calculating..) On Business Purchase With GST Invoice

Orient GST Offer

Orient Electric offers customized purchasing solutions for registered business owners by providing GST invoices. Each purchase includes a business GST invoice of your company/organization name and GST number.

Terms & Conditions

  • Enter your valid GST Number during checkout on the website.
  • Billing Name and Address should be same as exactly mentioned in GST registration certificate.
  • Shipping address and Billing address must be of the same State.
  • Ensure your GST number is valid. B2B invoice will not be generated without it.
  • In case of non-compliance with the above points, a B2C/Unregistered invoice will be issued, and no rectification can be made in the future in the invoice.

Shipping & Delivery

Check delivery details in your area

Buy in Bulk

Looking to make bulk purchases?

Product Highlights
  1. Bi-Directional Connection Terminal- Ensures easy and reliable connection from both line and load sides.
  2. Advanced Air Circulation Channels- Designed for efficient heat dissipation and enhanced performance.
  3. Easy Dismantling Mechanism- Provides convenient installation and maintenance.
  4. Positive Flag Indication- Clear visual indication for ON/OFF or trip status.
  5. Pad Locking Provision- Enables secure locking for added operational safety.
  6. Protective Terminal Covers- Enhances user safety by preventing accidental contact.
  7. SDB Technology- Integrated advanced technology for improved operational reliability.
  8. Overheat Sensing Technology- Detects abnormal temperature rise for enhanced protection.
  9. No Manual Thermal Bi-Metal Adjustment Required- Factory-calibrated design ensures consistent performance and reliability.
  10. Reduced Welding Joints- Improves product durability and electrical efficiency.
  11. Enhanced Arc Quenching System- Provides faster and safer arc suppression during operation.
  12. Line-Load Reversibility- Allows flexible installation from either side.
  13. Easy DIN Rail Clipping- Ensures quick and hassle-free mounting.
  14. Low Power Consumption- Optimized design for improved energy efficiency.
  15. 35 mm² Cable Terminal Capacity- Supports larger cable sizes for better connectivity.
  16. RoHS Compliant- Manufactured in accordance with environmental safety standards.
  17. IP20 Protection- Provides protection against accidental finger contact with live parts.
share View full details
₹259
From ₹259 ₹259 ₹259 ₹259 ₹259 MRP: ₹327
21% off

Inclusive of all taxes

Product Specifications
Technical Specification
Rated Voltage (Ue) 240 – 415 Vac
Rated Frequency (f) 50 Hz
Breaking Capacity 10kA
Energy limiting Class (Ue) 3
Index of protection IP20 (IP40)
Terminal capacity 1-25mm²,max.2Nm
Impulse withsdtand voltage (Uimp) 4 kV
Ambient Temperature Max -25°C...+55°C
Build in Width 17.8 mm
Power Supply Bi Directional (Top and Bottom)
Standard IS/IEC 60898-1 EN 60898-1
Design Specification
Body color RAL 7035
Body Finish Matt Finishing
Knob color RAL 7005
ON indication Red
OFF indication Green
Air Circulation Design Yes
